Installation guide: Gateway

Kiona's gateway is a collecting unit for wM-Bus sensors. This article provides information on how to install and register it.

Prerequisites

• Be qualified to carry out electrical installations.
• Have a personal Kiona-account from the building owner or from Kiona's Technical Support.
• Carry and use measuring equipment for control measurement of resistance, voltage and polarity.

Contents

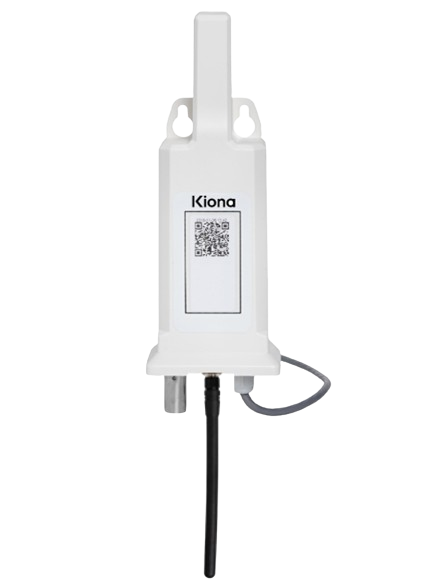

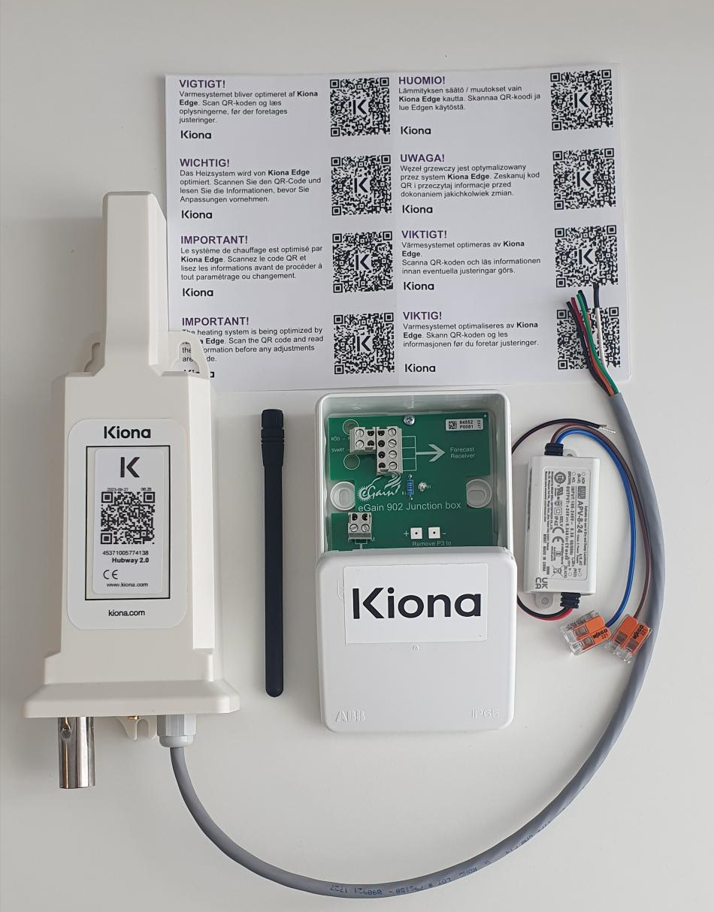

• HUB
• Small black antenna
• 24VDC transformer
• Kiona junction box
• Kiona info stickers with QR-code

Preparation

Some things to think about before you start:

• Place according to information from Kiona project manager.
• Constant power supply required.
• Avoid mounting on metal surfaces, as it can disturb the signal.
• The casing is weather protected which enables you to place it outdoors.
• Strive to mount it where risk for sabotage is minimal.
• If mounted indoors, it’s OK to mount it upside down.

Installation

• Once the correct placement has been found, the following points should be followed:
  • Mount the gateway.
  • Confirm +24VDC polarity/voltage before powering the gateway.
  • When the Gateway is powered, a red light will flash on the bottom, when the light flashes green, it is OK to start the registration process.
• Capture both close-up and distant photos of the installed gateway:
  • Close-up photos for quality assurance of the mounting.
  • Distant photos for easy identification in case of future troubleshooting.

NOTE!

Before a new device is connected to the power supply, voltage and polarity MUST be measured to +24VDC, this is checked on the terminals where the unit's red + black cable is supposed to be connected.

Otherwise, Hub/GW risks breaking down and we will have to bill for a new unit.

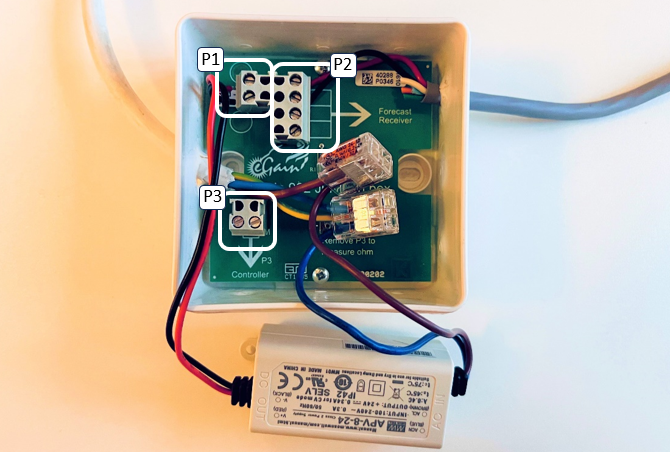

If Kiona's junction box is used, control measurement is made on the P2 terminal block (see below).

Registration

Info

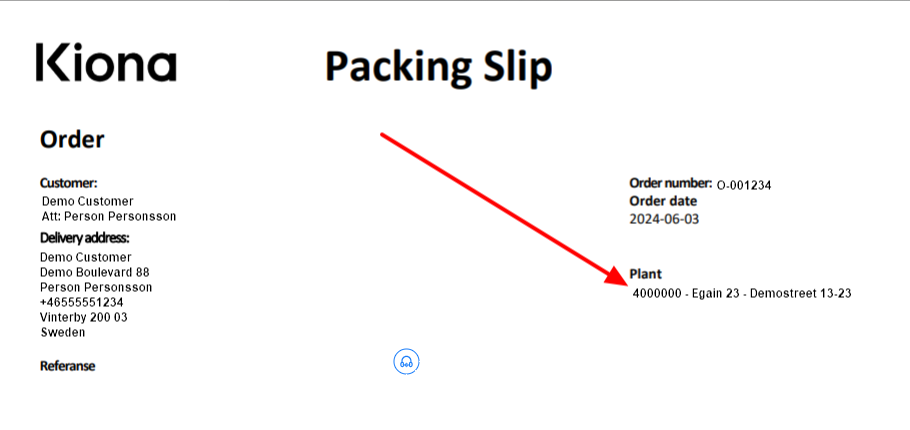

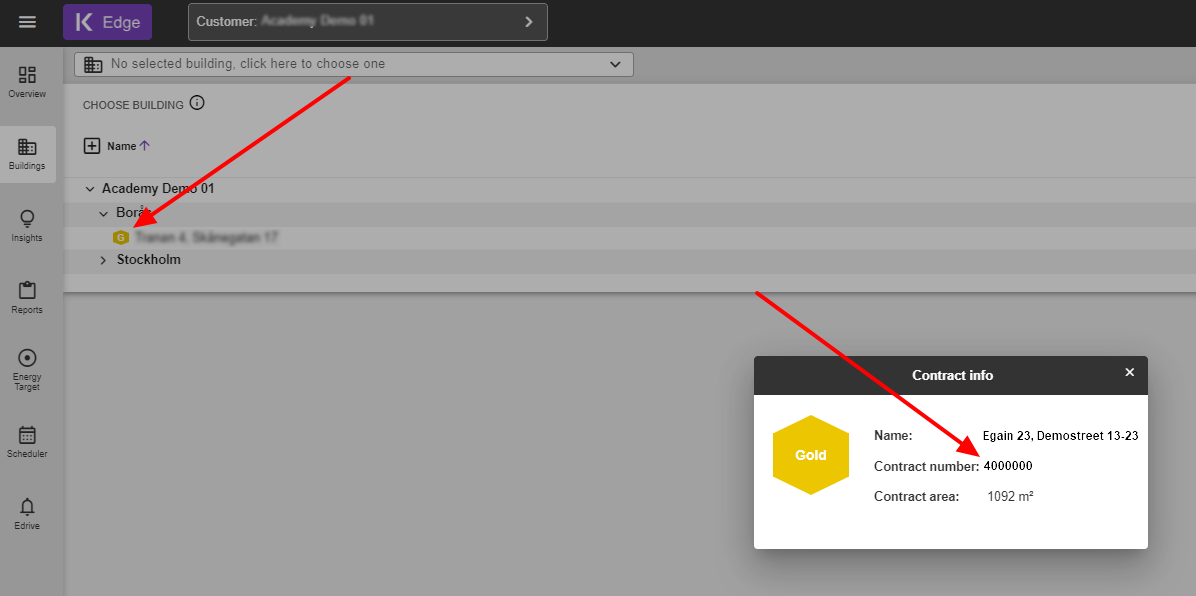

You will need the contract number to complete the registration. Contract number can be found on the packing slip or in Edge.

• Scan the QR code on the device.
• Use your Kiona account to log in. If you do not have a user account - Contact the building owner or Kiona's Technical Support.
• Select Gateway (2.0).
• Enter the contract number(see info above) of the building you are installing on.
• Make sure that the building's address is correct, then click next.
• For the registration of:
  • Gateway mounted indoors, follow instructions from Indoor registration
  • Gateway mounted outdoors, follow instructions from Outdoor registration

Indoor Registration

1. Choose your indoor placement.
2. Select the location from the dropdown menus for Address, Staircase and Floor.
3. Upload the photos you took earlier.
4. Scroll down and click on the accept checkbox for found sensors, click next.
5. Read through the summary, if everything is correct, click accept and then next.
6. Registration complete! Call Kiona installation support ([phone]) for verification.

Outdoor Registration

1. Choose outdoor placement.
2. Select the type of antenna connected to the Gateway.
3. Select the location by using GPS or enter the address.
   1. Click on the map where the gateway is located to place a marker.
   2. You can also add extra information about the placement in a text field.
4. Upload the photos you took earlier.
5. Scroll down and click on the accept checkbox for found sensors, click next.
6. Read through the summary, if everything is correct, click accept and then next.
7. Registration complete! Call Kiona installation support ([phone]) for verification.
