Installation - How to set up a technical network

How to set up the technical network

This guide will help you configure the technical network on your site PC.

Quick guide:

1. Press Windows + R, type ncpa.cpl and press Enter
2. Right-click on Ethernet 2 → Properties
3. Select Internet Protocol Version 4 (TCP/IPv4) → Properties
4. Set IP address: 192.168.10.10, Subnet mask: 255.255.255.0
5. Click Save and close

1. Open network settings

You can do this in two ways:

• Shortcut: Press Windows + R, type ncpa.cpl, press Enter
• Alternative method: Right-click on the internet icon in the system tray

Screenshot: Right-click on the internet icon to open the menu.

Select "Open network and internet settings":

Screenshot: Network and Internet settings menu.

2. Change adapter options

Click on "Change adapter options".

Screenshot: Selection for adapter options.

3. Select the correct adapter

Right-click on "Ethernet 2" → select "Properties".

Screenshot: Properties for Ethernet 2.

4. Configure IPv4

Select "Internet Protocol Version 4 (TCP/IPv4)" and click "Properties".

Screenshot: Select IPv4 and open properties.

5. Enter the IP settings

Set the following values:

• IP address: 192.168.10.10
• Subnet mask: 255.255.255.0

Screenshot: Completed IP settings.

6. Check the system's IP address

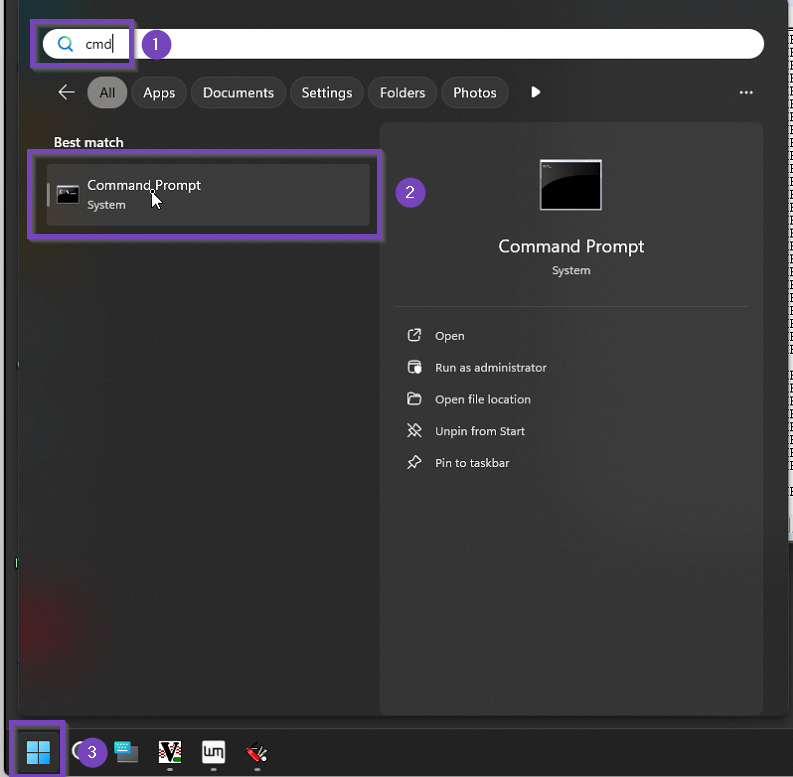

You can check which IP address the PC has by opening CMD (Command Prompt) and typing:

ipconfig /all

Screenshot: Result of the ipconfig /all command.

Screenshot: Overview of network adapters and IP configuration.
