How to connect a danfoss 720 in remote access
720 Service tool:
https://www.danfoss.com/en/service-and-support/downloads/dcs/adap-kool-software/ak-st-500/#tab-overview
Remote Access is a service for accessing equipment on the customer network. It consists of a standalone application that the end user needs to download and run. I.e. not a pure browser solution. But the web pages can interact with the Remote Access app, i.e. e. start the app with the user's credentials / selected plant ID.
The service runs on the plant, which (on request) can connect to iwmac.net to get instructions on what to do. The service is able to expose a set of fixed (predefined) ip:port or a set of dynamic (by scanning) ip:port. The service acts as a proxy and directs traffic from the end user to the selected equipment.
The Remote Access app also connects to iwmac.net. It establishes a set of tcp servers hosted on localhost addresses and also acts as a proxy, directing traffic to the service at the facility.
If the user has the correct access, the solution can be accessed in the following ways:
- Button in Operation Centre
- https://iwmac.net/remote_access/
-
RAC button in Service mode
Equipment types that are supported in Remote Access:
-
Carel Boss (http, https)
-
AK2 (binary protocol, use AK2 Service Tool)
-
AK3 (http, https), both single AK3 and master/slave configuration.
-
Green & Cool (old version) (http and binary protocol, needs Internet Explorer)
General equipment supported in Remote Access:
-
Support all http
-
Support most https
-
Support most binary protocols, the user may use 3rd party software connecting to the exposed localhost port.
NB! UDP is unfortunately not yet supported
-
Open StoreView via Remote Access

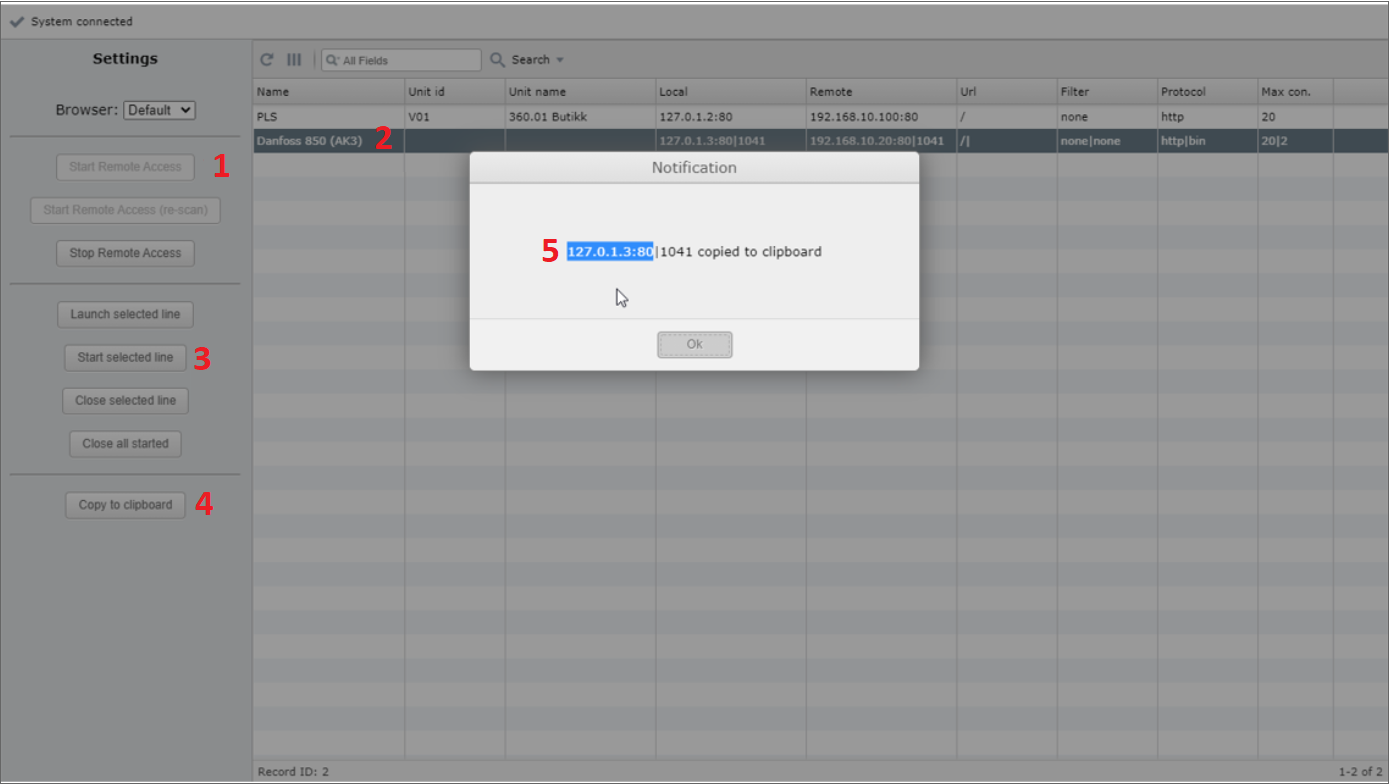

1. Start Remote Access
2. Select Danfoss 850 (if your facility has multiple gateways, you can see additional information further down in the guide)
3. Start selected line
4. "Copy to Clipboard"
5. Copy address
--> Enter the address in "StoreView" on your PC (Download and install "StoreView") and press "Connect".
How to open Service Tools via Remote Access

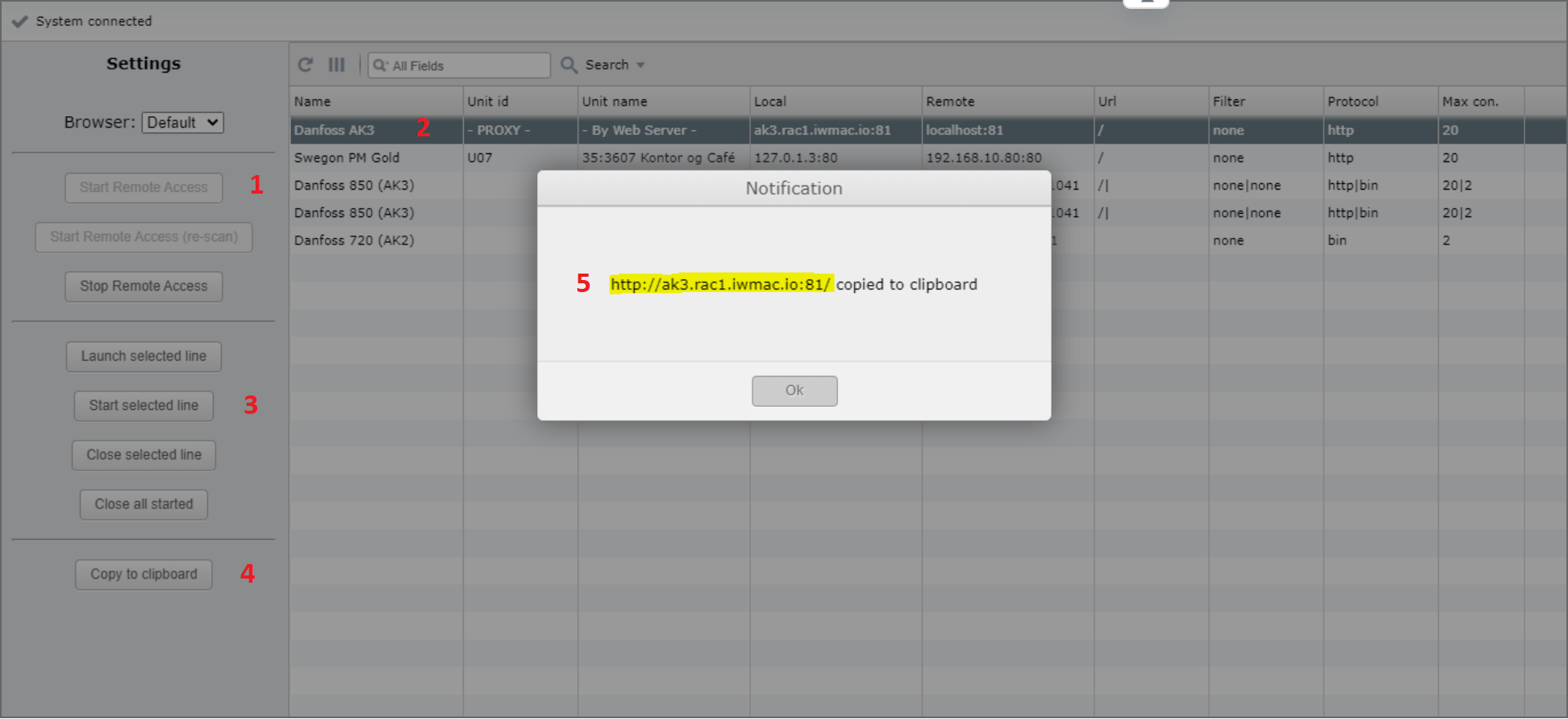

If the facility has more than 1 gateway
Then an extra line will appear in the RA that is used (the one with "unit id": - PROXY -)
--> Otherwise it is the same procedure as above.

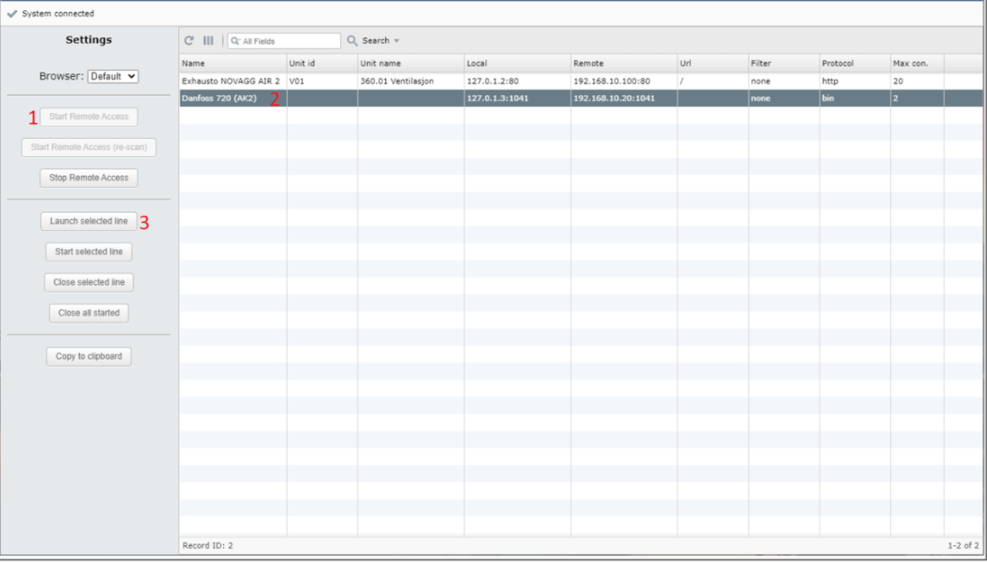

1. Start Remote Access
2. Select Danfoss 720
3. Launch selected line
--> You will then see the IP address that is entered in the new connection in the Service Tools programme on your PC (Download and install "Service Tools").
Once you have opened Service Tools, you create a new connection. Click on "Add".

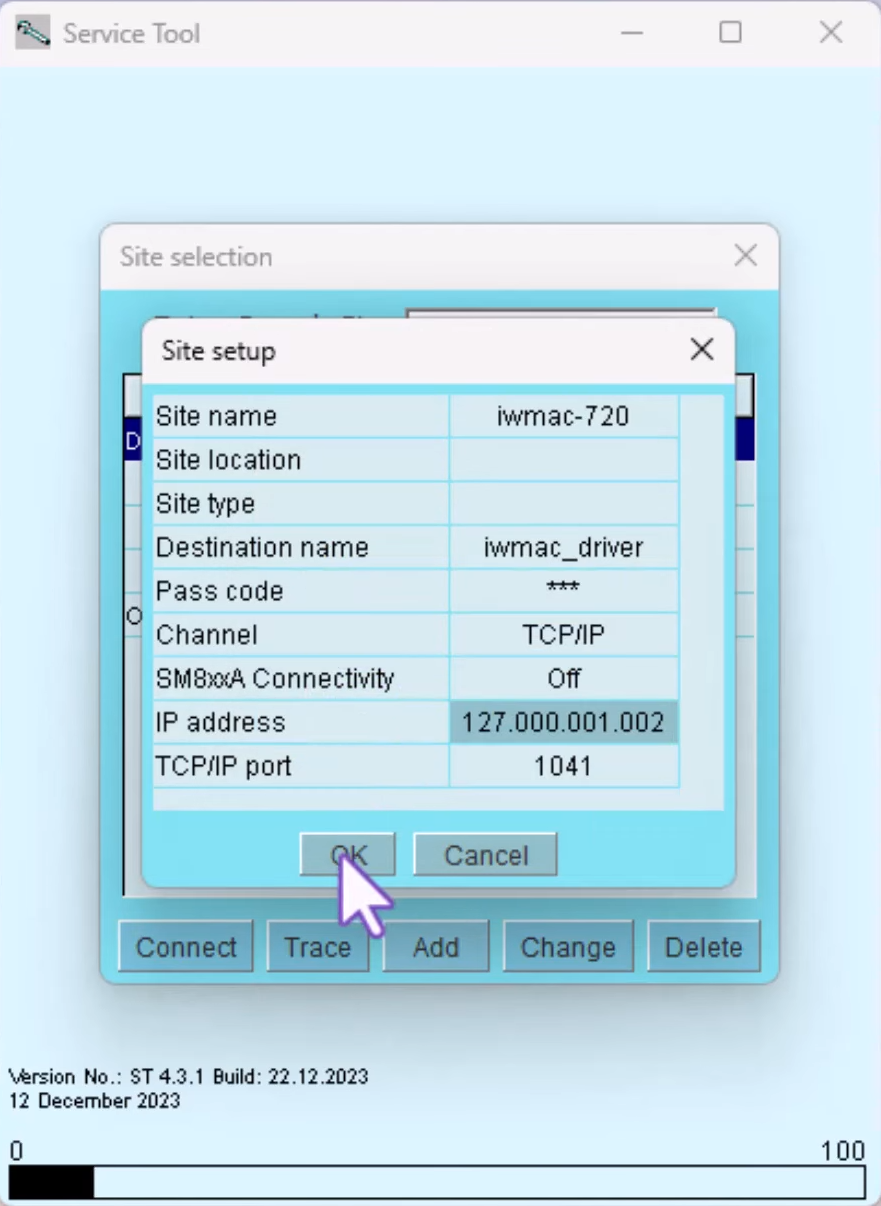

The following highlighted lines must be filled in/changed:
Site name: Name your connection.
Destination name: default to use "default"
Pass code: "123"
Channel: change to TCP/IP
IP address: the one you got generated from RA
TCP/IP port: 1041
Then just press "OK" and "Connect" the newly created connection.
